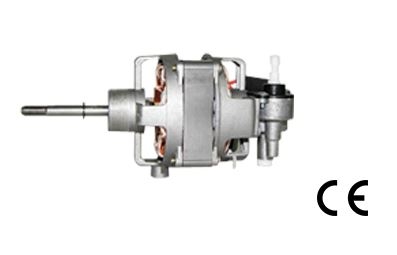

KM-12, KM-16 Fan Motor

KM-12, KM-16 Fan Motor
KM-12, KM-16 Fan Motor
Product Description

Our motor has passed testing by SGS. and test for the compliance with IEC certificate EN 60335-1; EN 60335-2-80

Item No.KM-12KM-12KM-16(16mm)KM-16(20mm)KM-16
(25mm)
Voltage 110V 220V 110V 220V 110V 220V 220V
Cycle 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 50Hz
Power 40W 40W 50W 50W 60W 60W 65W
Pole 4 4 4 4 4 4 4
Speed Select 3 3 3 3 3 3 3
Thickness of silicon sheet 75 x 75 mm 75 x 75 mm 75 x 75 mm 75 x 75 mm 75 x 75 mm 75 x 75 mm 75 x 75 mm
Stacked 12mm 14mm 16mm 16mm 20mm 20mm 25mm
R.P.M.
(No Load)		 1700 1500 1720 1500 1720 1500 1500
Insulation B B B B B B B
Capacitor 2UF/
250V		 1.5UF/
350V		 3UF/
250V		 2UF/
400V		 3UF/
250V		 2UF/
400V		 2UF/
400V
Oscillation Yes
(Gear Box)		 Yes
(Gear Box)		 Yes
(Gear Box)		 Yes
(Gear Box)		 Yes
(Gear Box)		 Yes
(Gear Box)		 Yes
(Gear Box)
Temperature Below 70 degrees centigrade Below 70 degrees centigrade Below 70 degrees centigrade Below 70 degrees centigrade Below 70 degrees centigrade Below 70 degrees centigrade Below 70 degrees centigrade

*Regarding the motor specification is normal type, but we can in according to your requirement to change and revise our motor specification
