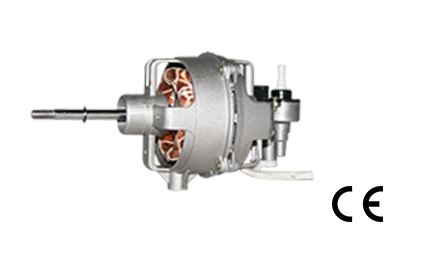

KM-16A, KM-18A Fan Motor

KM-16A, KM-18A Fan Motor
KM-16A, KM-18A Fan Motor
Product Description
Item No.KM-16A (16mm)KM-18A (20mm)KM-18A (25mm)
Voltage 220V 110V 220V 110V / 120V 220V / 240V
Cycle 50Hz 50Hz 50Hz 60Hz 50Hz
Power 50W 60W 60W 70W / 80W 75W / 85W
Pole 4 4 4 4 4
Speed Select 3 3 3 3 3
Thickness of silicon sheet Φ 90mm Φ 90mm Φ 90mm Φ 90mm Φ 90mm
Stacked 16mm 20mm 20mm 25mm 25mm
R.P.M.
(No Load)		 1500 1720 1500 1720 1500
Insulation class B B B B B
Capacitor 2UF/400V 4UF/250V 2UF/400V 4UF/250V 2UF/400V
Oscillation Yes (Gear Box) Yes (Gear Box) Yes (Gear Box) Yes (Gear Box) Yes (Gear Box)
Temperature Below 70 degrees centigrade Below 70 degrees centigrade Below 70 degrees centigrade Below 70 degrees centigrade Below 70 degrees centigrade

*Regarding the motor specification is normal type, but we can in according to your requirement to change and revise our motor specification
