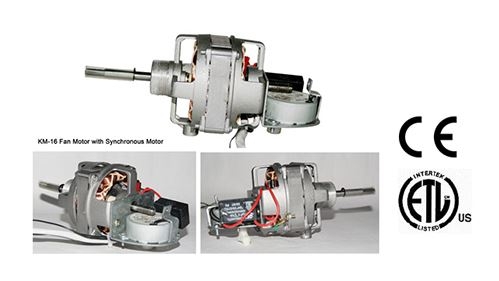

KM-16 Fan Motor with Synchronous Motor

KM-16 Fan Motor with Synchronous Motor
KM-16 Fan Motor with Synchronous Motor
Product Description
Item No.KM-16 (16mm)KM-16 (20mm)KM-16 (25mm)
Voltage 110V 220V 110V 220V 220V
Cycle 60Hz 50Hz 60Hz 50Hz 50Hz
Power 53W 53W 63W 63W 68W
Pole 4 4 4 4 4
Speed Select 3 3 3 3 3
Thickness of
silicon sheet		 75 x 75 mm 75 x 75 mm 75 x 75 mm 75 x 75 mm 75 x 75 mm
Stacked 16mm 16mm 20mm 20mm 25mm
R.P.M.
(No Load)		 1720 1500 1720 1500 1500
Insulation B B B B B
Capacitor 3UF/250V 2UF/400V 3UF/250V 2UF/400V 2UF/400V
Oscillation Yes Yes Yes Yes Yes
Temperature Below 70 degrees centigrade Below 70 degrees centigrade Below 70 degrees centigrade Below 70 degrees centigrade Below 70 degrees centigrade

*Regarding the motor specification is normal type, but we can in according to your requirement to change and revise our motor specification
