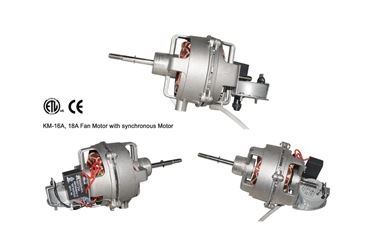

KM-16A, KM-18A with Synchronous Motor

KM-16A, KM-18A with Synchronous Motor
KM-16A, KM-18A with Synchronous Motor
Product Description
Item No.KM-16A (16mm)KM-18A (20mm)KM-18A (25mm)
Voltage 220V 110V 220V 110V / 120V 220V / 240V
Cycle 50Hz 50Hz 50Hz 60Hz 50Hz
Power 53W 63W 63W 73W / 83W 78W / 88W
Pole 4 4 4 4 4
Speed Select 3 3 3 3 3
Thickness of silicon sheet Φ 90mm Φ 90mm Φ 90mm Φ 90mm Φ 90mm
Stacked 16mm 20mm 20mm 25mm 25mm
R.P.M.
(No Load)		 1500 1720 1500 1720 1500
Insulation class B B B B B
Capacitor 2UF/400V 4UF/250V 2UF/400V 4UF/250V 2UF/400V
Oscillation Yes Yes Yes Yes Yes
Temperature Below 70 degrees centigrade Below 70 degrees centigrade Below 70 degrees centigrade Below 70 degrees centigrade Below 70 degrees centigrade
